Infineon
BC807U
Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, 2-Element, PNP, Silicon, SC-74, 6 PIN
Frequency200MHz
PackageSC
PolarityPNP
Quick Jump:
Technical Specifications
Infineon BC807U technical specifications.
General
Package/Case
SC
Collector Base Voltage (VCBO)
50V
Collector Emitter Saturation Voltage
700mV
Emitter Base Voltage (VEBO)
5V
Height
1mm
Length
2.9mm
Max Collector Current
500mA
Max Frequency
200MHz
Max Operating Temperature
150°C
Max Power Dissipation
330mW
Packaging
Tape and Reel
Polarity
PNP
RoHS Compliant
Yes
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Infineon BC807U Datasheet
Download the complete datasheet for Infineon BC807U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

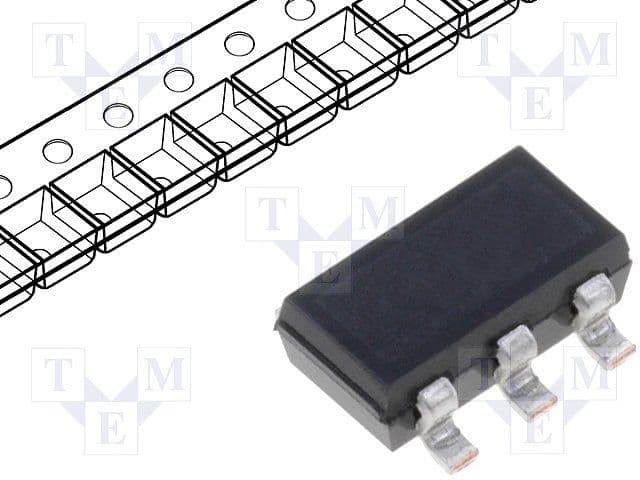

Product Images
