Infineon
BC817K-16
Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT PACKAGE-3
Frequency170MHz
PackageSOT
PolarityNPN
Quick Jump:
Technical Specifications
Infineon BC817K-16 technical specifications.
General
Package/Case
SOT
Collector Base Voltage (VCBO)
50V
Collector Emitter Saturation Voltage
700mV
Emitter Base Voltage (VEBO)
5V
Height
0.9mm
Length
2.9mm
Max Collector Current
500mA
Max Frequency
170MHz
Max Operating Temperature
150°C
Max Power Dissipation
500mW
Packaging
Tape and Reel
Polarity
NPN
RoHS Compliant
Yes
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Infineon BC817K-16 Datasheet
Download the complete datasheet for Infineon BC817K-16 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

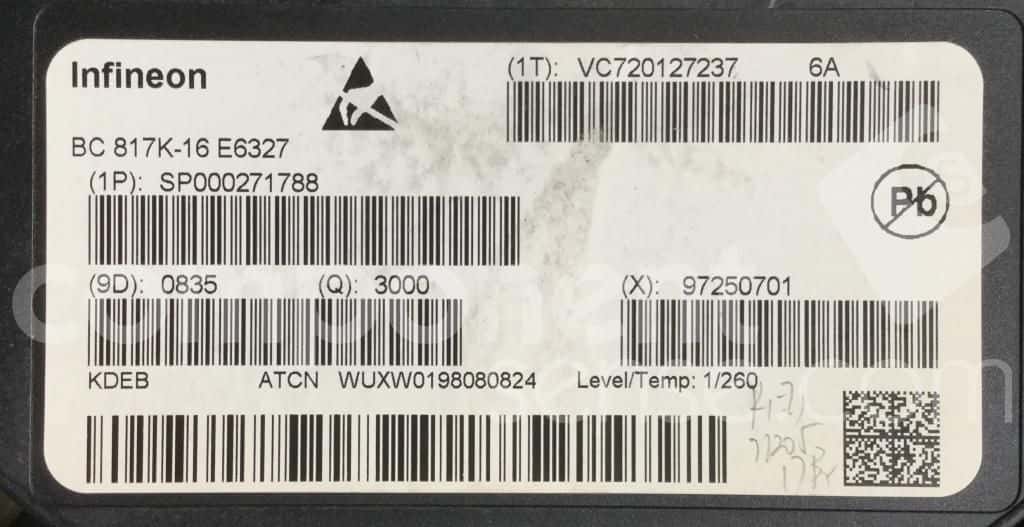

Product Images
