Infineon
BC817SUE6327HTSA1
Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT, SC-74, 6 PIN
PackageSC
MountingSurface Mount
PolarityNPN
Quick Jump:
Technical Specifications
Infineon BC817SUE6327HTSA1 technical specifications.
General
Package/Case
SC
Collector Base Voltage (VCBO)
50V
Collector Emitter Breakdown Voltage
45V
Collector Emitter Voltage (VCEO)
400mV
Collector-emitter Voltage-Max
400mV
Contact Plating
Tin, Matte
Halogen Free
Not Halogen Free
Lead Free
Lead Free
Max Breakdown Voltage
45V
Max Collector Current
500mA
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
1W
Mount
Surface Mount
Packaging
Cut Tape
Polarity
NPN
RoHS Compliant
Yes
Transition Frequency
170MHz
Compliance
RoHS
Compliant
Datasheet
Infineon BC817SUE6327HTSA1 Datasheet
Download the complete datasheet for Infineon BC817SUE6327HTSA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

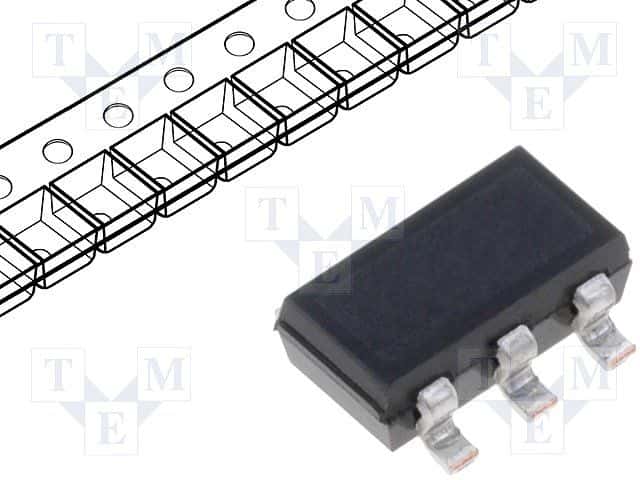

Product Images
