Infineon
BC817UPN
Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, 2-Element, NPN and PNP, Silicon, ROHS COMPLIANT, SC-74, 6 PIN
Frequency170MHz
PackageSC
PolarityNPN, PNP
Quick Jump:
Technical Specifications
Infineon BC817UPN technical specifications.
General
Package/Case
SC
Collector Base Voltage (VCBO)
50V
Collector Emitter Saturation Voltage
700mV
Collector Emitter Voltage (VCEO)
45V
Emitter Base Voltage (VEBO)
5V
Height
1mm
Length
2.9mm
Max Collector Current
500mA
Max Frequency
170MHz
Max Operating Temperature
150°C
Max Power Dissipation
330mW
Packaging
Tape and Reel
Polarity
NPN, PNP
RoHS Compliant
Yes
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Infineon BC817UPN Datasheet
Download the complete datasheet for Infineon BC817UPN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

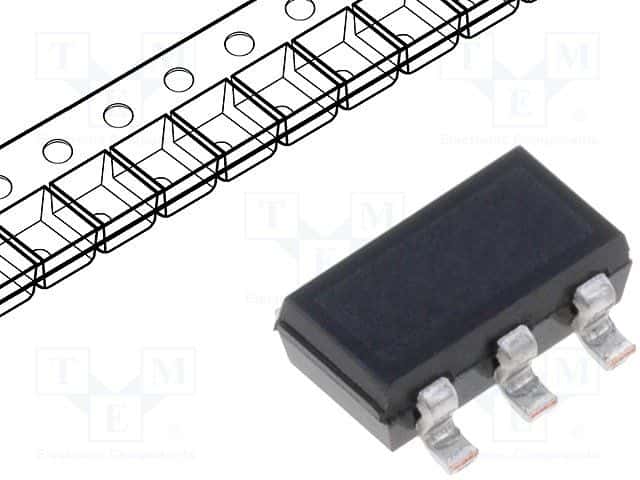

Product Images
