Infineon
BC856S
Small Signal Bipolar Transistor, 0.1A I(C), 65V V(BR)CEO, 2-Element, PNP, Silicon, ROHS COMPLIANT PACKAGE-6
Frequency250MHz
PackageSOT
Voltage65V
PolarityPNP
Quick Jump:
Technical Specifications
Infineon BC856S technical specifications.
General
Package/Case
SOT
Collector Base Voltage (VCBO)
80V
Collector Emitter Saturation Voltage
650mV
Emitter Base Voltage (VEBO)
5V
Halogen Free
Halogen Free
Height
0.8mm
Length
2mm
Max Collector Current
100mA
Max Frequency
250MHz
Max Operating Temperature
150°C
Max Power Dissipation
250mW
Packaging
Tape and Reel
Polarity
PNP
RoHS Compliant
Yes
Voltage
65V
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Infineon BC856S Datasheet
Download the complete datasheet for Infineon BC856S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

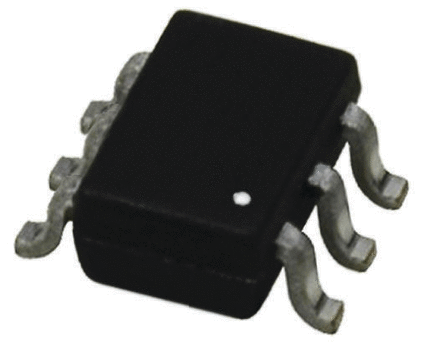

Product Images
