The BCX51-16 is a PNP bipolar junction transistor with a collector base voltage of 45V and collector emitter saturation voltage of 500mV. It features a max collector current of 1A and max frequency of 125MHz. The transistor is packaged in a SOT package with dimensions of 4.5mm in length and 1.6mm in height. It can operate at a max temperature of 150°C and has a max power dissipation of 2W. The BCX51-16 is RoHS compliant and available in tape and reel packaging.
Frequency125MHz
PackageSOT
PolarityPNP
Quick Jump:
Technical Specifications
Infineon BCX51-16 technical specifications.
General
| Package/Case | SOT |
| Collector Base Voltage (VCBO) | 45V |
| Collector Emitter Saturation Voltage | 500mV |
| Emitter Base Voltage (VEBO) | 5V |
| Height | 1.6mm |
| Length | 4.5mm |
| Max Collector Current | 1A |
| Max Frequency | 125MHz |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 2W |
| Packaging | Tape and Reel |
| Polarity | PNP |
| RoHS Compliant | Yes |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BCX51-16 Datasheet
Download the complete datasheet for Infineon BCX51-16 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

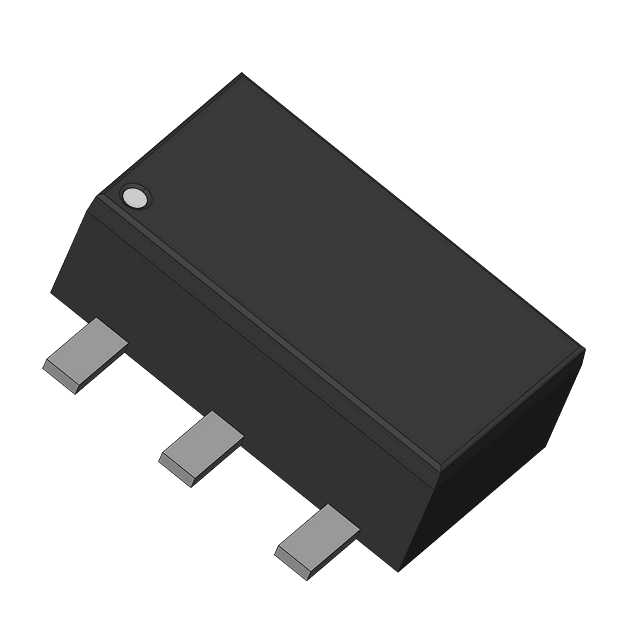

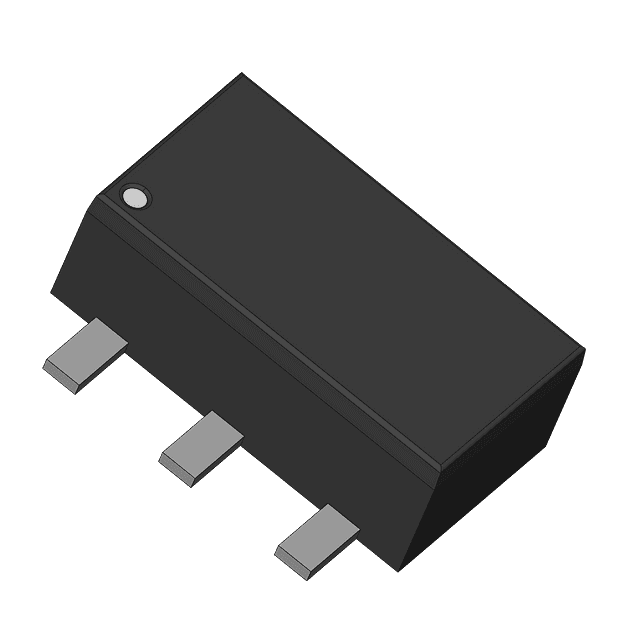

Product Images
