Infineon
BFR360L3E6765XTMA1
RF Transistor, 14GHz Transition Frequency, 35mA Collector Current, 210mW Power Dissipation, Surface Mount
The BFR360L3E6765XTMA1 is a RF transistor from Infineon with a maximum collector current of 35mA and a maximum power dissipation of 210mW. It operates within a temperature range of -55°C to 150°C and is compliant with RoHS regulations. The transistor features a gold contact plating and is packaged in cut tape for surface mount applications.
MountingSurface Mount
Quick Jump:
Technical Specifications
Infineon BFR360L3E6765XTMA1 technical specifications.
General
| Collector Base Voltage (VCBO) | 15V |
| Collector Emitter Breakdown Voltage | 9V |
| Collector Emitter Voltage (VCEO) | 6V |
| Contact Plating | Gold |
| Gain | 16dB |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Breakdown Voltage | 9V |
| Max Collector Current | 35mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 210mW |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Transition Frequency | 14GHz |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BFR360L3E6765XTMA1 Datasheet
Download the complete datasheet for Infineon BFR360L3E6765XTMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

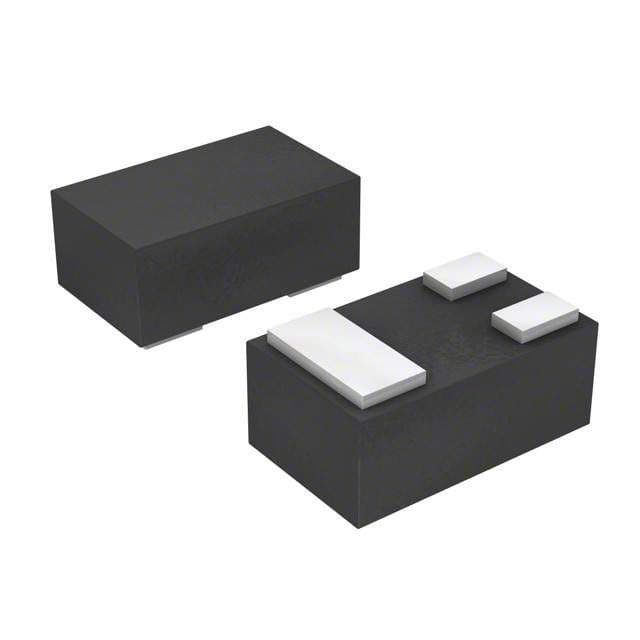

Product Images
