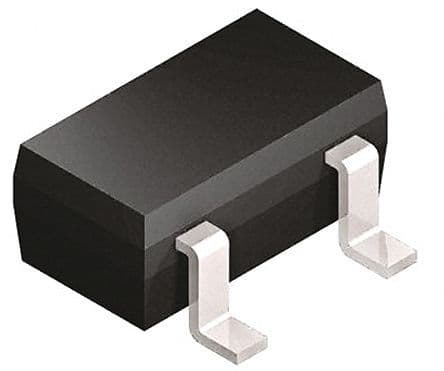

The BSS215PH6327XTSA1 is a SOT-23 packaged N-Channel JFET from Infineon. It features a continuous drain current of 1.5A and a drain to source voltage of -20V. The gate to source voltage is 12V and the maximum power dissipation is 500mW. This device is suitable for surface mount applications and is compliant with RoHS regulations. The operating temperature range is from -55°C to 150°C.
Infineon BSS215PH6327XTSA1 technical specifications.
| Package/Case | SOT-23 |
| Contact Plating | Tin, Matte |
| Continuous Drain Current (ID) | 1.5A |
| Drain to Source Voltage (Vdss) | -20V |
| Gate to Source Voltage (Vgs) | 12V |
| Halogen Free | Halogen Free |
| Input Capacitance | 346pF |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | -20V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Rds On Max | 150mR |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| RoHS | Compliant |
Download the complete datasheet for Infineon BSS215PH6327XTSA1 to view detailed technical specifications.
