Infineon
BSZ100N03LSG
Power Field-Effect Transistor, 12A I(D), 30V, 0.015ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, GREEN, PLASTIC, TSDSON-8
Quick Jump:
Technical Specifications
Infineon BSZ100N03LSG technical specifications.
General
| Continuous Drain Current (ID) | 40A |
| Drain to Source Voltage (Vdss) | 30V |
| Fall Time | 2.4ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Height | 1.1mm |
| Input Capacitance | 1.5nF |
| Length | 3.4mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 30W |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Rds On Max | 10mR |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Turn-Off Delay Time | 13ns |
| Turn-On Delay Time | 2.9ns |
| Width | 3.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BSZ100N03LSG Datasheet
Download the complete datasheet for Infineon BSZ100N03LSG to view detailed technical specifications.
No datasheet is available for this part.

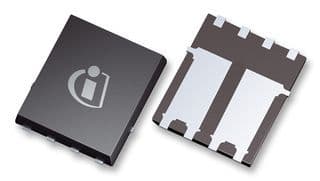

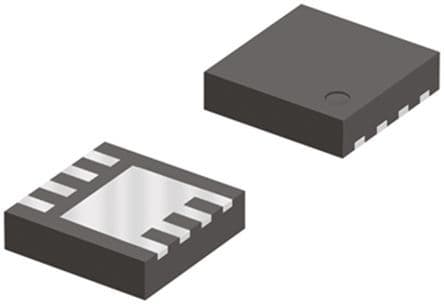

Product Images
