High-side driver IC featuring 60V drain-to-source voltage and 5A output current. This single-channel peripheral driver offers 28mR on-state resistance and robust over-voltage and over-temperature fault protection. Operating from a 10V supply, it includes halogen-free and RoHS compliant status, packaged in a TO-252-3 for tape and reel distribution.
PackageTO-252-3
Current10uA
Quick Jump:
Technical Specifications
Infineon BTS3028SDRATMA1 technical specifications.
General
Package/Case
TO-252-3
Drain to Source Voltage (Vdss)
60V
Fault Protection
Over Voltage, Over Temperature
Halogen Free
Halogen Free
Interface
On/Off
Lead Free
Contains Lead
Max Dual Supply Voltage
60V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Supply Current
30uA
Nominal Input Voltage
10V
Number of Channels
1
Number of Outputs
1
On-State Resistance
28mR
Operating Supply Voltage
10V
Output Configuration
Low Side
Output Current
5A
Output Current per Channel
5A
Package Quantity
2500
Packaging
Tape and Reel
Rds On Max
30mR
RoHS Compliant
Yes
Series
HITFET®
Supply Current
10uA
Compliance
RoHS
Compliant
Datasheet
Infineon BTS3028SDRATMA1 Datasheet
Download the complete datasheet for Infineon BTS3028SDRATMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

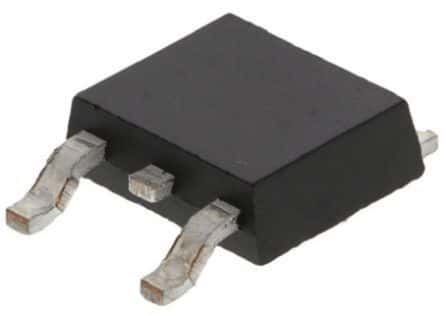

Product Images
