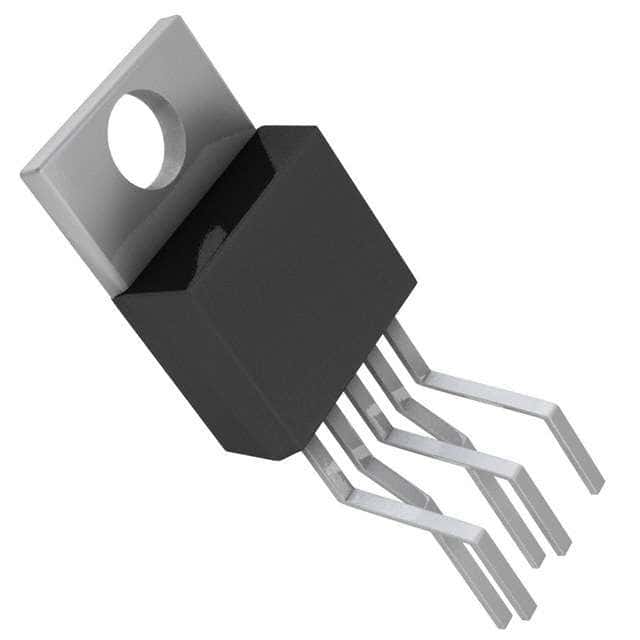

The BTS436L2 is a high side driver from Infineon with a TO-220-5 package and through hole mount. It features over voltage and over temperature fault protection, and is capable of delivering 8.8A of output current with a power dissipation of 75W. The device operates within a temperature range of -40°C to 150°C and has a supply current of 800uA. The BTS436L2 is not RoHS compliant and contains lead, making it a non-lead free component.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BTS436L2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220-5 |
| Fault Protection | Over Voltage, Over Temperature |
| Interface | On/Off |
| Lead Free | Contains Lead |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 8.8A |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Configuration | High Side |
| Output Current | 8.8A |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| Power Dissipation | 75W |
| RoHS Compliant | No |
| Series | PROFET® |
| Supply Current | 800uA |
| RoHS | Not Compliant |
