High-side driver IC with 9.8A output current, featuring over-voltage and over-temperature fault protection. This surface-mount component operates from a 4.75V to 43V supply voltage, offering a nominal input voltage of 41V and a maximum output current of 8.8A. With a low on-state resistance of 35mR and a maximum power dissipation of 75W, it is designed for demanding applications. The TO-263-6 package ensures robust thermal performance up to 150°C.
PackageTO-263-6
Voltage40V
Current9.8A
MountingSurface Mount
Quick Jump:
Technical Specifications
Infineon BTS436L2GATMA1 technical specifications.
General
Package/Case
TO-263-6
Current
9.8A
Fault Protection
Over Voltage, Over Temperature
Halogen Free
Halogen Free
Height
4.4mm
Interface
On/Off
Lead Free
Contains Lead
Length
10mm
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
8.8A
Max Power Dissipation
75W
Max Supply Voltage
43V
Min Supply Voltage
4.75V
Mount
Surface Mount
Nominal Input Voltage
41V
Number of Drivers
1
Number of Outputs
1
On-State Resistance
35mR
Operating Supply Voltage
41V
Output Configuration
High Side
Output Current
9.8A
Output Current per Channel
9.8A
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
75W
Radiation Hardening
No
RoHS Compliant
Yes
Series
PROFET®
Supply Current
800uA
Voltage
40V
Weight
0.01164oz
Width
9.25mm
Compliance
RoHS
Compliant
Datasheet
Infineon BTS436L2GATMA1 Datasheet
Download the complete datasheet for Infineon BTS436L2GATMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

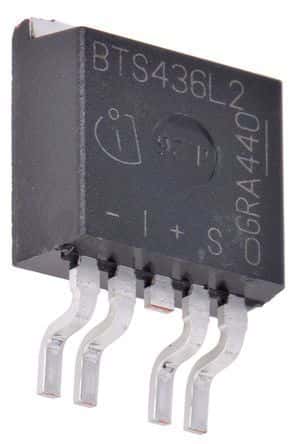

Product Images
