Infineon
BTS50055-1TMC
Buffer/Inverter Based Peripheral Driver, 1 Driver, 17A, MOS, PSSO7, GREEN, PLASTIC, TO-220, 7 PIN
PackageTO-220-7
Quick Jump:
Technical Specifications
Infineon BTS50055-1TMC technical specifications.
General
Package/Case
TO-220-7
Halogen Free
Halogen Free
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
130A
Max Power Dissipation
170W
Max Supply Voltage
34V
Min Supply Voltage
5.5V
Number of Channels
1
Number of Outputs
1
On-State Resistance
4.4mR
Output Current per Channel
70A
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Series
PROFET®
Compliance
RoHS
Compliant
Datasheet
Infineon BTS50055-1TMC Datasheet
Download the complete datasheet for Infineon BTS50055-1TMC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

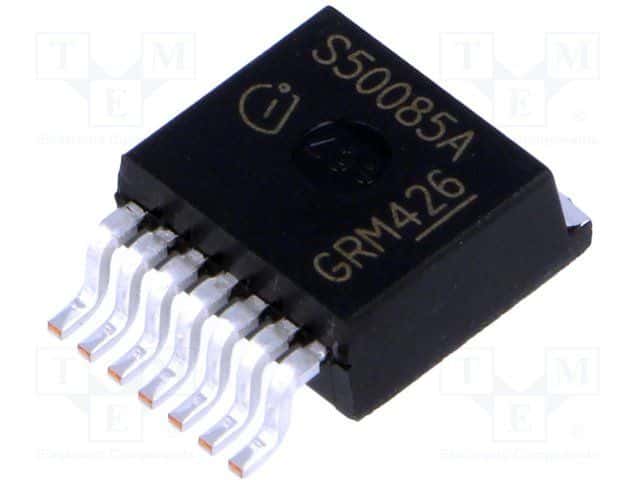

Product Images
