The BTS500601TEAAUMA2 is a high side driver from Infineon with a maximum operating temperature of 150°C and a minimum operating temperature of -40°C. It features a maximum output current of 16.5A and a maximum supply voltage of 28V. The device is packaged in a TO-252-5 case and is available in tape and reel packaging. It is RoHS compliant and contains lead. The BTS500601TEAAUMA2 is designed for use in fault protection applications, including over temperature and over voltage protection.
PackageTO-252-5
Current12mA
Resistance6.8mR
Quick Jump:
Technical Specifications
Infineon BTS500601TEAAUMA2 technical specifications.
General
| Package/Case | TO-252-5 |
| Fault Protection | Over Temperature, Over Voltage |
| Halogen Free | Halogen Free |
| Interface | On/Off |
| Lead Free | Contains Lead |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 16.5A |
| Max Supply Voltage | 28V |
| Min Supply Voltage | 4.7V |
| Nominal Input Voltage | 13.5V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 6.8mR |
| Output Configuration | High Side |
| Output Current per Channel | 16.5A |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Resistance | 6.8mR |
| RoHS Compliant | Yes |
| Supply Current | 12mA |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BTS500601TEAAUMA2 Datasheet
Download the complete datasheet for Infineon BTS500601TEAAUMA2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

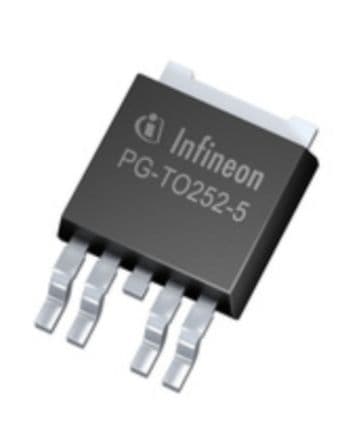

Product Images
