Infineon
BTS500801TMCATMA1
Buffer/Inverter Based Peripheral Driver, 140A, PSSO7, GREEN, PLASTIC, TO-220, SOP-7
PackageTO-220-7
Current1.4mA
Power81W
Quick Jump:
Technical Specifications
Infineon BTS500801TMCATMA1 technical specifications.
General
Package/Case
TO-220-7
Fault Protection
Over Voltage, Over Temperature
Halogen Free
Halogen Free
Interface
On/Off
Lead Free
Contains Lead
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
9.5A
Max Supply Voltage
38V
Min Supply Voltage
5.5V
Nominal Supply Current
1.4mA
Number of Channels
1
Number of Outputs
1
On-State Resistance
7mR
Output Configuration
High Side
Output Current per Channel
9.5A
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
81W
RoHS Compliant
Yes
Series
PROFET™, Reversave™
Supply Current
1.4mA
Compliance
RoHS
Compliant
Datasheet
Infineon BTS500801TMCATMA1 Datasheet
Download the complete datasheet for Infineon BTS500801TMCATMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

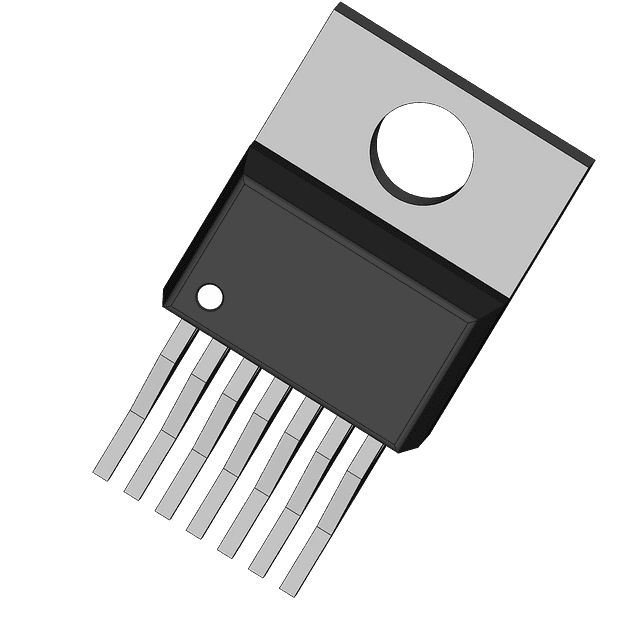

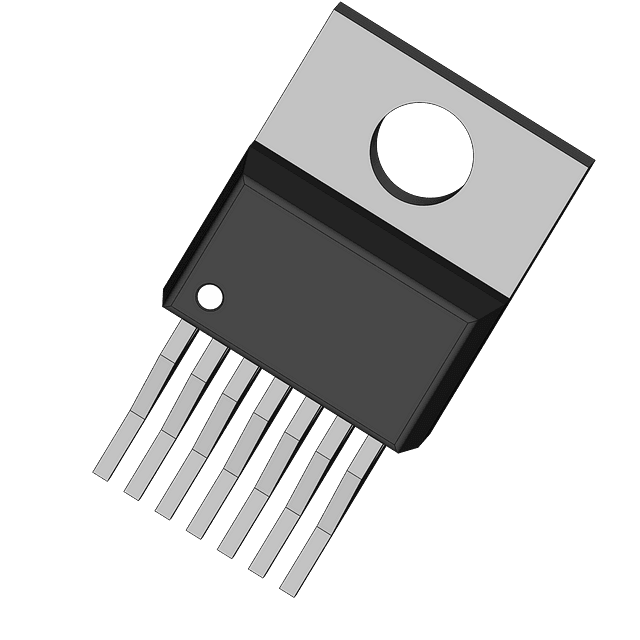

Product Images
