Infineon
BTS5030-2EKA
Buffer/Inverter Based Peripheral Driver, 2 Driver, 4A, PDSO14, GREEN, PLASTIC, MS-012BB, SOP-14
Current5mA
Power2.1W
Quick Jump:
Technical Specifications
Infineon BTS5030-2EKA technical specifications.
General
Fault Protection
Over Voltage, Over Temperature
Halogen Free
Halogen Free
Interface
On/Off
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
4A
Max Power Dissipation
2.1W
Max Supply Voltage
28V
Min Supply Voltage
5V
Number of Channels
2
Number of Outputs
2
On-State Resistance
55mR
Output Configuration
High Side
Output Current
6A
Output Current per Channel
4A
Package Quantity
2500
Packaging
Rail/Tube
Power Dissipation
2.1W
RoHS Compliant
Yes
Series
PROFET®
Supply Current
5mA
Compliance
RoHS
Compliant
Datasheet
Infineon BTS5030-2EKA Datasheet
Download the complete datasheet for Infineon BTS5030-2EKA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

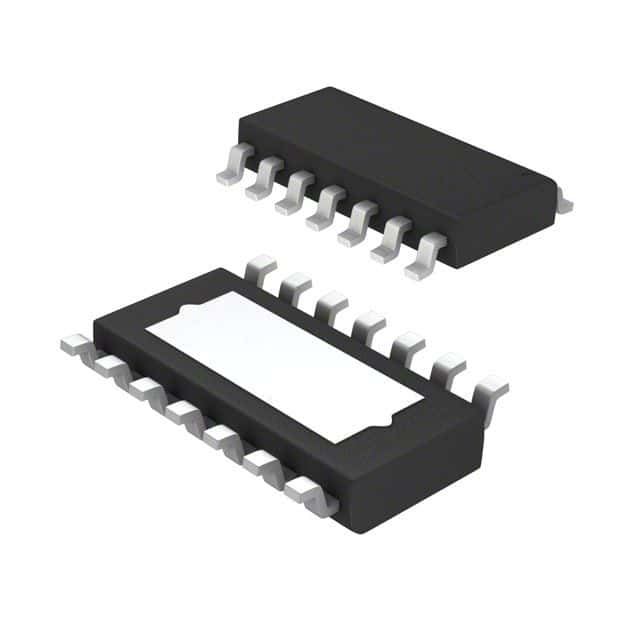

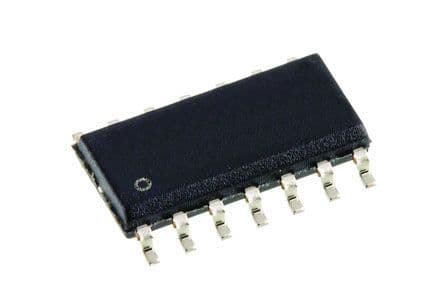

Product Images
