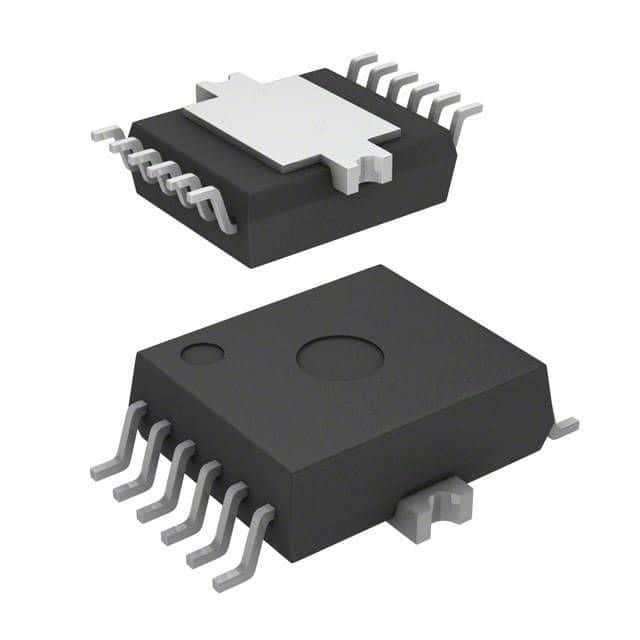

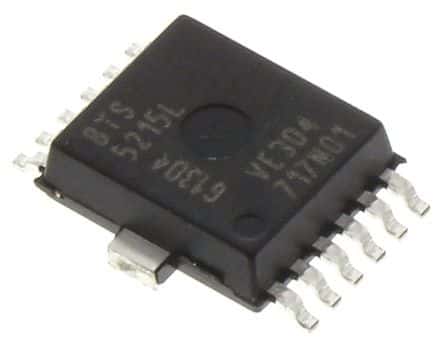

Dual-channel peripheral driver IC featuring buffer/inverter logic. Delivers 3.7A output current per channel with a low 90mR on-state resistance. Operates from a maximum supply voltage of 40V and nominal input voltage of 16V. Surface mountable in a 12-pin SOP package, with a maximum operating temperature of 150°C. Offers 3.1W maximum power dissipation and 1.2mA supply current.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BTS5215LAUMA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Halogen Free | Halogen Free |
| Lead Free | Contains Lead |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 3.1W |
| Max Supply Voltage | 40V |
| Mount | Surface Mount |
| Nominal Input Voltage | 16V |
| Number of Channels | 2 |
| Number of Outputs | 2 |
| On-State Resistance | 90mR |
| Output Current | 3.7A |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Dissipation | 3.1W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 1.2mA |
| RoHS | Compliant |
Download the complete datasheet for Infineon BTS5215LAUMA1 to view detailed technical specifications.
