Infineon
BTS611L1
Buffer/Inverter Based Peripheral Driver, 2 Driver, 7.5A, MOS, PZFM7, TO-220AB, 7 PIN
PackageTO-220-7
Current4mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Infineon BTS611L1 technical specifications.
General
Package/Case
TO-220-7
Fault Protection
Over Voltage, Over Temperature
Interface
On/Off
Lead Free
Lead Free
Length
15.6mm
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
1.8A
Max Power Dissipation
36W
Mount
Through Hole
Number of Channels
2
Number of Outputs
2
Output Configuration
High Side
Package Quantity
500
Packaging
Rail/Tube
RoHS Compliant
No
Series
PROFET®
Supply Current
4mA
Thickness
4.4mm
Width
9.9mm
Compliance
RoHS
Not Compliant
Datasheet
Infineon BTS611L1 Datasheet
Download the complete datasheet for Infineon BTS611L1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

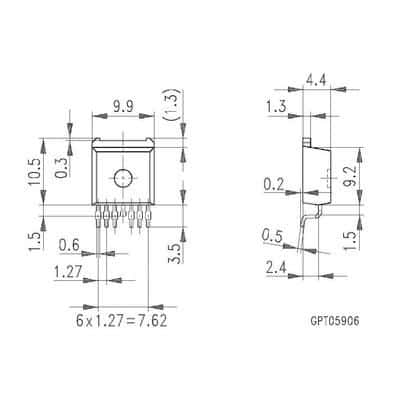

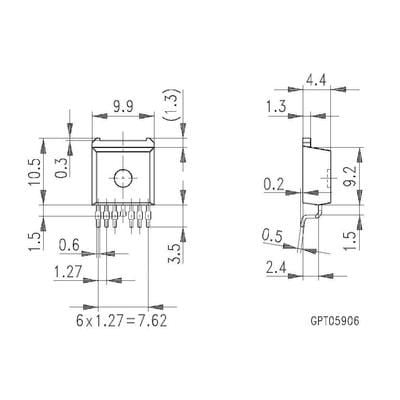

Product Images
