Infineon
BTT60502EKAXUMA1
Buffer/Inverter Based Peripheral Driver, 3A, PDSO14, GREEN, PLASTIC, MS-012BB, SOP-14
PackageSOIC
Current9mA
Resistance100mR
MountingSurface Mount
Quick Jump:
Technical Specifications
Infineon BTT60502EKAXUMA1 technical specifications.
General
Package/Case
SOIC
Fault Protection
Over Voltage, Over Temperature
Halogen Free
Halogen Free
Interface
On/Off
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Power Dissipation
2.1W
Max Supply Voltage
36V
Mount
Surface Mount
Nominal Input Voltage
28V
Number of Channels
2
Number of Outputs
2
Operating Supply Voltage
28V
Output Configuration
High Side
Output Current
3A
Package Quantity
2500
Packaging
Tape and Reel
Power Dissipation
2.1W
Resistance
100mR
RoHS Compliant
Yes
Supply Current
9mA
Compliance
RoHS
Compliant
Datasheet
Infineon BTT60502EKAXUMA1 Datasheet
Download the complete datasheet for Infineon BTT60502EKAXUMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

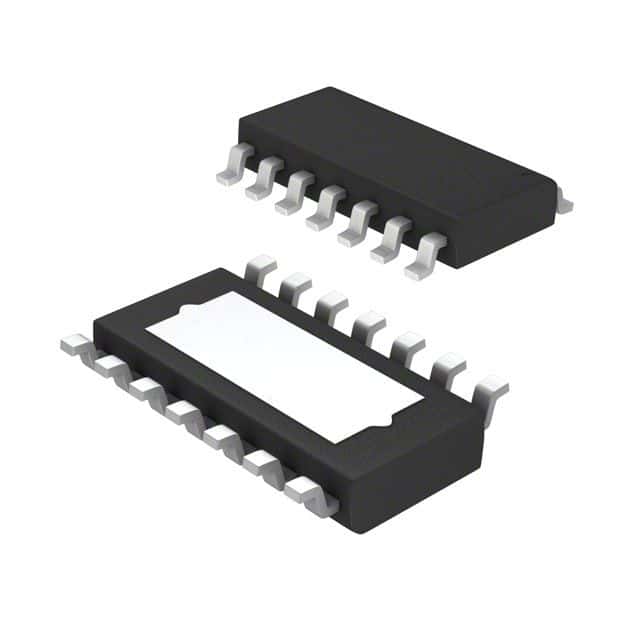

Product Images
