16-bit microcontroller featuring a 25MHz clock speed and 11KB RAM. This ROMless device supports SPI, UART, USART, EBI/EMI, and CAN interfaces, with 111 programmable I/O pins and 5 timers/counters. Operating from a 4.5V to 5.5V supply, it includes POR, PWM, and WDT peripherals. Packaged in a BQFP (MQFP-144) surface mount format, it operates between 0°C and 70°C with a maximum power dissipation of 1.5W.
Frequency25MHz
PackageBQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Infineon C167CSLMCABXQLA2 technical specifications.
General
Access Time
25us
Package/Case
BQFP
Data Bus Width
16b
Frequency
25MHz
Interface
SPI, UART, USART, EBI/EMI, CAN
Lead Free
Contains Lead
Max Frequency
25MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1.5W
Max Supply Voltage
5.5V
Memory Size
0KB
Memory Type
ROMless,
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Programmable I/O
111
Number of Timers/Counters
5
Operating Supply Voltage
5V
Oscillator Type
External
Peripherals
POR, PWM, WDT
RAM Size
11KB
RoHS Compliant
Yes
Series
C16xx
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Infineon C167CSLMCABXQLA2 Datasheet
Download the complete datasheet for Infineon C167CSLMCABXQLA2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

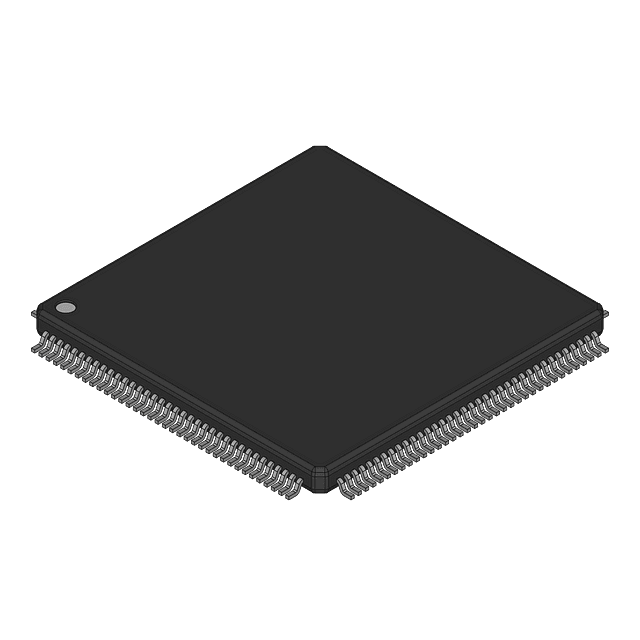

Product Images
