Infineon
FF450R07ME4B11BOSA1
Trans IGBT Module N-CH 650V 560A 1450000mW Automotive 11-Pin ECONOD-4 Tray
PackageModule
MountingChassis Mount, Screw
Power1.45kW
Quick Jump:
Technical Specifications
Infineon FF450R07ME4B11BOSA1 technical specifications.
General
Package/Case
Module
Collector Emitter Breakdown Voltage
650V
Collector-emitter Voltage-Max
1.95V
Continuous Collector Current
560A
Halogen Free
Not Halogen Free
Height
17.5mm
Input
Standard
Input Capacitance
27.5nF
Lead Free
Contains Lead
Max Collector Current
560A
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.45kW
Mount
Chassis Mount, Screw
NTC Thermistor
Yes
Packaging
Bulk
Power Dissipation
1.45kW
RoHS Compliant
Yes
Turn-Off Delay Time
480ns
Turn-On Delay Time
85ns
Compliance
RoHS
Compliant
Datasheet
Infineon FF450R07ME4B11BOSA1 Datasheet
Download the complete datasheet for Infineon FF450R07ME4B11BOSA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

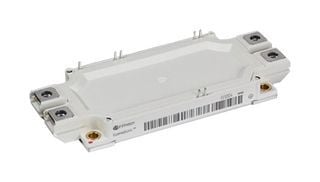

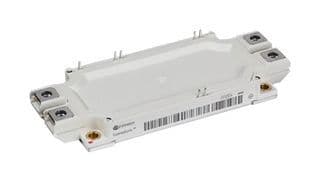

Product Images
