Isolated flyback switching controller IC featuring current-mode operation and a maximum switching frequency of 65kHz. This BICMOS device offers a 650V drain-to-source voltage and a maximum duty cycle of 50%. Integrated fault protection includes over-voltage and over-temperature capabilities. Designed for through-hole mounting in a PDIP-7 package, it operates from a 10.5V to 24V supply voltage and supports up to 79W output power.
PackagePDIP
MountingThrough Hole
Power79W
Quick Jump:
Technical Specifications
Infineon ICE2QR0665ZXKLA1 technical specifications.
General
| Package/Case | PDIP |
| Drain to Source Voltage (Vdss) | 650V |
| Duty Cycle | 50% |
| Fault Protection | Over Voltage, Over Temperature |
| Halogen Free | Halogen Free |
| Isolation | Isolated |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 650V |
| Max Duty Cycle | 50% |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -25°C |
| Max Power Dissipation | 79W |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 10.5V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Operating Supply Current | 1.5mA |
| Output Current | 2.5A |
| Output Power | 79W |
| Output Voltage | 650V |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | CoolMOS™, CoolSET™-Q1 |
| Topology | Flyback |
| Weight | 0.030018oz |
Compliance
| RoHS | Compliant |
Datasheet
Infineon ICE2QR0665ZXKLA1 Datasheet
Download the complete datasheet for Infineon ICE2QR0665ZXKLA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

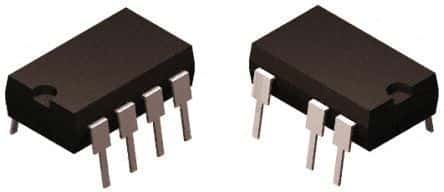

Product Images
