Infineon
ICE2QR2280ZXKLA1
Switching Controller, Current-mode, 65kHz Switching Freq-Max, BICMOS, PDIP7, GREEN, PLASTIC, DIP-7
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Infineon ICE2QR2280ZXKLA1 technical specifications.
General
Package/Case
PDIP
Drain to Source Voltage (Vdss)
800V
Duty Cycle
50%
Fault Protection
Over Voltage, Over Temperature
Halogen Free
Halogen Free
Lead Free
Lead Free
Max Dual Supply Voltage
800V
Max Operating Temperature
130°C
Min Operating Temperature
-25°C
Max Power Dissipation
54W
Mount
Through Hole
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
CoolMOS™, CoolSET™-Q1
Topology
Flyback
Compliance
RoHS
Compliant
Datasheet
Infineon ICE2QR2280ZXKLA1 Datasheet
Download the complete datasheet for Infineon ICE2QR2280ZXKLA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

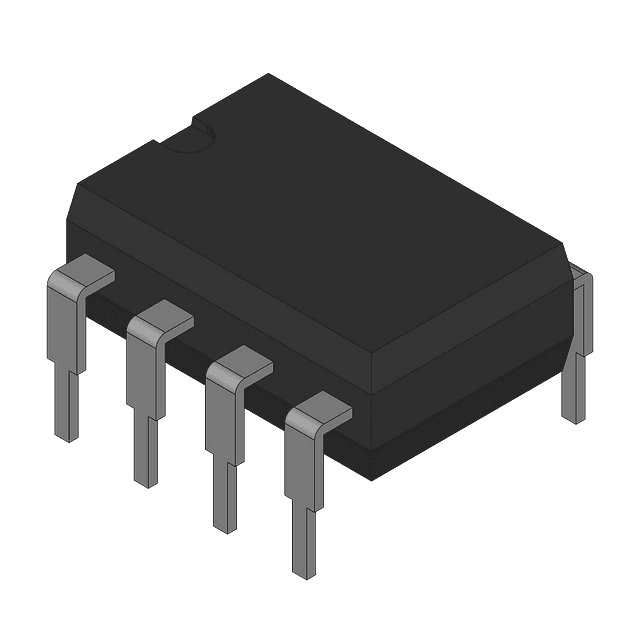

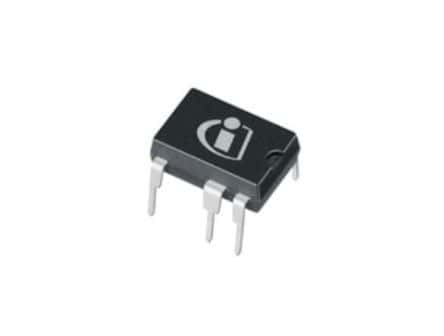

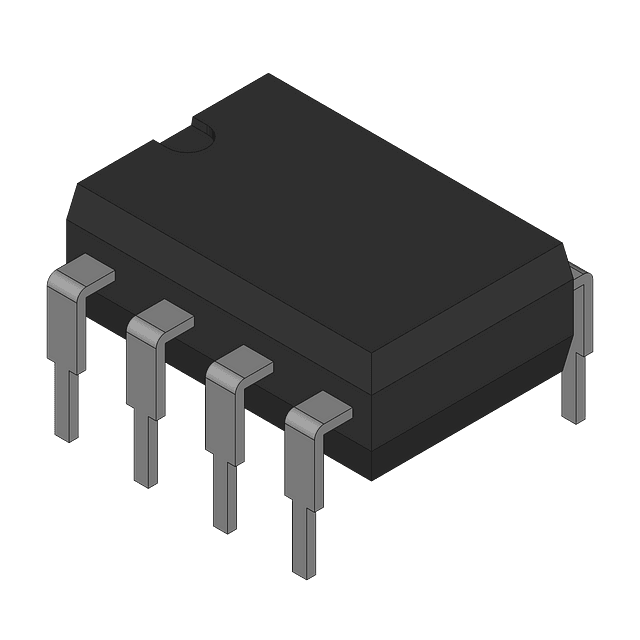

Product Images
