Infineon
ICE3A2065Z
Switching Regulator, Current-mode, 100kHz Switching Freq-Max, PDIP7, ROHS COMPLIANT, PLASTIC, DIP-7
PackageDIP
Voltage27V
Power32W
Quick Jump:
Technical Specifications
Infineon ICE3A2065Z technical specifications.
General
Package/Case
DIP
Lead Free
Lead Free
Max Duty Cycle
77%
Max Input Voltage (AC)
265V
Min Input Voltage (AC)
85V
Max Input Voltage
265V
Min Input Voltage
85V
Max Operating Temperature
130°C
Min Operating Temperature
-25°C
Max Power Dissipation
57W
Operating Supply Voltage
21V
Package Quantity
2000
Packaging
Rail/Tube
Power Dissipation
32W
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
CoolSET®F3
Topology
Flyback
Voltage
27V
Compliance
RoHS
Compliant
Datasheet
Infineon ICE3A2065Z Datasheet
Download the complete datasheet for Infineon ICE3A2065Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

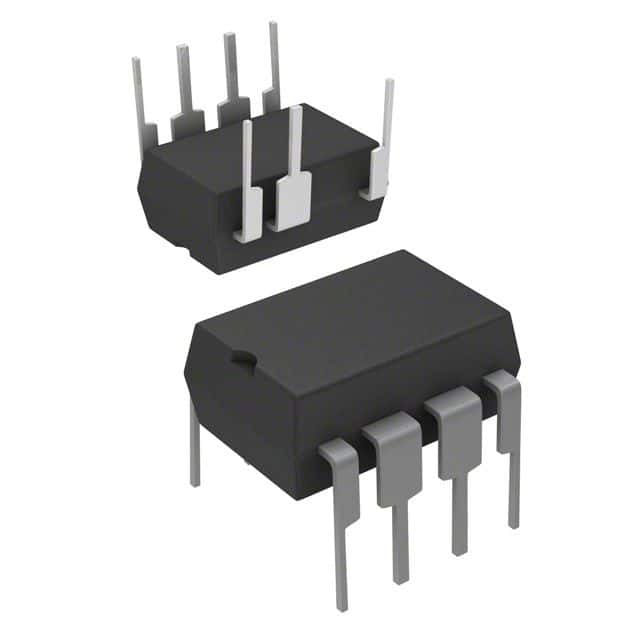

Product Images
