Infineon
ICE3AR2280CJZXKLA1
Switching Controller, Current-mode, 113kHz Switching Freq-Max, BICMOS, PDIP7, GREEN, PLASTIC, DIP-7
MountingThrough Hole
Quick Jump:
Technical Specifications
Infineon ICE3AR2280CJZXKLA1 technical specifications.
General
Drain to Source Voltage (Vdss)
800V
Duty Cycle
75%
Fault Protection
Over Voltage, Over Temperature
Halogen Free
Halogen Free
Lead Free
Lead Free
Max Dual Supply Voltage
800V
Max Operating Temperature
130°C
Min Operating Temperature
-25°C
Max Power Dissipation
43W
Mount
Through Hole
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
CoolMOS™, CoolSET™F3R
Topology
Flyback
Compliance
RoHS
Compliant
Datasheet
Infineon ICE3AR2280CJZXKLA1 Datasheet
Download the complete datasheet for Infineon ICE3AR2280CJZXKLA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

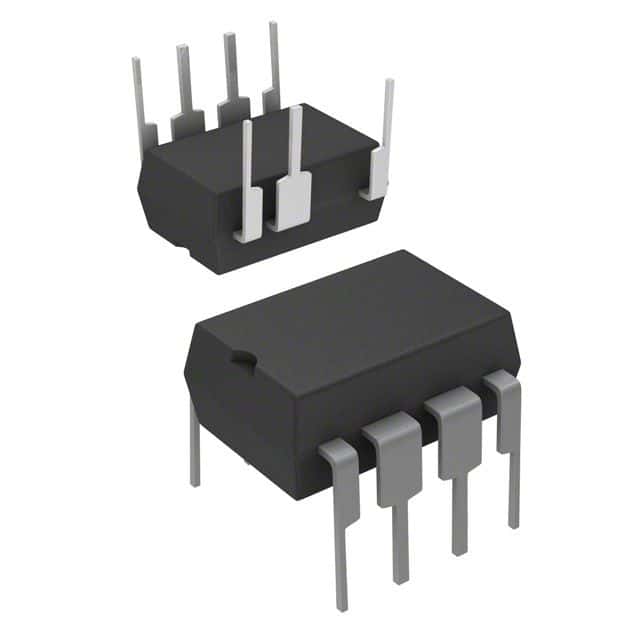

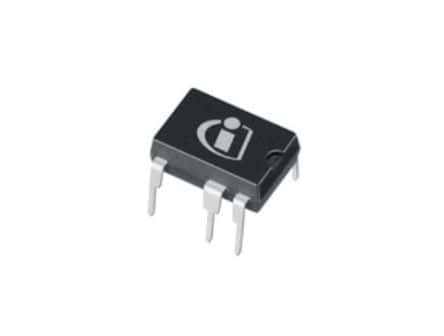

Product Images
