Infineon
ICE3BR0665JFXKSA1
Switching Controller, Current-mode, 75kHz Switching Freq-Max, BICMOS, PZFM6, GREEN, PLASTIC, TO-220, 6 PIN
PackageTO-220-6
MountingThrough Hole
Quick Jump:
Technical Specifications
Infineon ICE3BR0665JFXKSA1 technical specifications.
General
Package/Case
TO-220-6
Drain to Source Voltage (Vdss)
650V
Duty Cycle
75%
Fall Time
30ns
Fault Protection
Over Voltage, Over Temperature
Halogen Free
Halogen Free
Lead Free
Lead Free
Max Dual Supply Voltage
650V
Max Operating Temperature
130°C
Min Operating Temperature
-25°C
Max Power Dissipation
259W
Mount
Through Hole
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Series
CoolMOS™, CoolSET™F3R
Topology
Flyback
Compliance
RoHS
Compliant
Datasheet
Infineon ICE3BR0665JFXKSA1 Datasheet
Download the complete datasheet for Infineon ICE3BR0665JFXKSA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

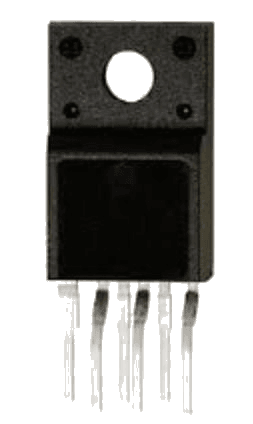

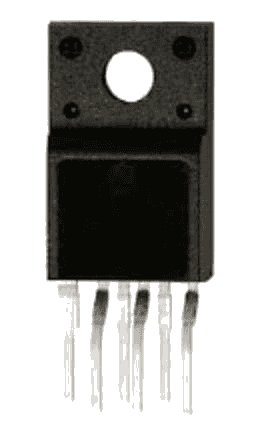

Product Images
