The CoolSET F3R DC/DC controller is a high-power device with a maximum operating temperature of 130°C and a minimum operating temperature of -25°C. It features a maximum duty cycle of 80% and a maximum power dissipation of 27W. The device is packaged in a DIP-8 package and is compliant with RoHS regulations. It is designed for use in high-temperature applications and is suitable for a wide range of power management tasks.
PackageDIP
Quick Jump:
Technical Specifications
Infineon ICE3BR4765J technical specifications.
General
| Package/Case | DIP |
| Max Duty Cycle | 80% |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -25°C |
| Max Power Dissipation | 27W |
| Operating Supply Voltage | 25V |
| Output Voltage | 650V |
| Package Quantity | 2000 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | CoolSET®F3R |
Compliance
| RoHS | Compliant |
Datasheet
Infineon ICE3BR4765J Datasheet
Download the complete datasheet for Infineon ICE3BR4765J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

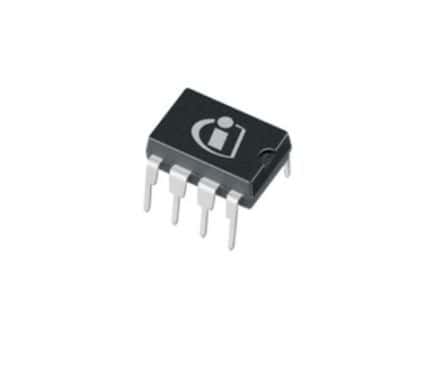

Product Images
