Flyback switching controller IC for power management applications. Features a 650V Drain to Source Voltage (Vdss) and a maximum duty cycle of 80%. Operates within a supply voltage range of 10.5V to 25V and offers fault protection against over voltage and over temperature. Packaged in a DIP format for through-hole mounting, this component is Halogen Free, Lead Free, and RoHS Compliant.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Infineon ICE3RBR1765JZXKLA1 technical specifications.
General
| Package/Case | DIP |
| Drain to Source Voltage (Vdss) | 650V |
| Duty Cycle | 75% |
| Fault Protection | Over Voltage, Over Temperature |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 650V |
| Max Duty Cycle | 80% |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 44.5W |
| Max Supply Voltage | 25V |
| Min Supply Voltage | 10.5V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 1.96R |
| Operating Supply Current | 2.7mA |
| Output Voltage | 650V |
| Package Quantity | 2000 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | CoolMOS™, CoolSET™F3R |
| Topology | Flyback |
| Weight | 0.030018oz |
Compliance
| RoHS | Compliant |
Datasheet
Infineon ICE3RBR1765JZXKLA1 Datasheet
Download the complete datasheet for Infineon ICE3RBR1765JZXKLA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

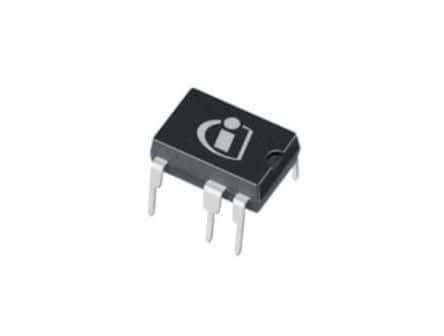

Product Images
