Infineon
IDH03SG60C
Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon Carbide, TO-220, GREEN, PLASTIC PACKAGE-2
PackageTO-220-2
Quick Jump:
Technical Specifications
Infineon IDH03SG60C technical specifications.
General
Average Rectified Current
3A
Package/Case
TO-220-2
Forward Current
3A
Lead Free
Lead Free
Max Forward Surge Current (Ifsm)
11.5A
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
15uA
Max Reverse Voltage (DC)
600V
Max Surge Current
11.5A
Package Quantity
500
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
11.5A
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Recovery Time
0ns
RoHS Compliant
Yes
Series
thinQ!™
Compliance
RoHS
Compliant
Datasheet
Infineon IDH03SG60C Datasheet
Download the complete datasheet for Infineon IDH03SG60C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

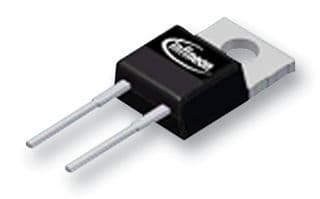

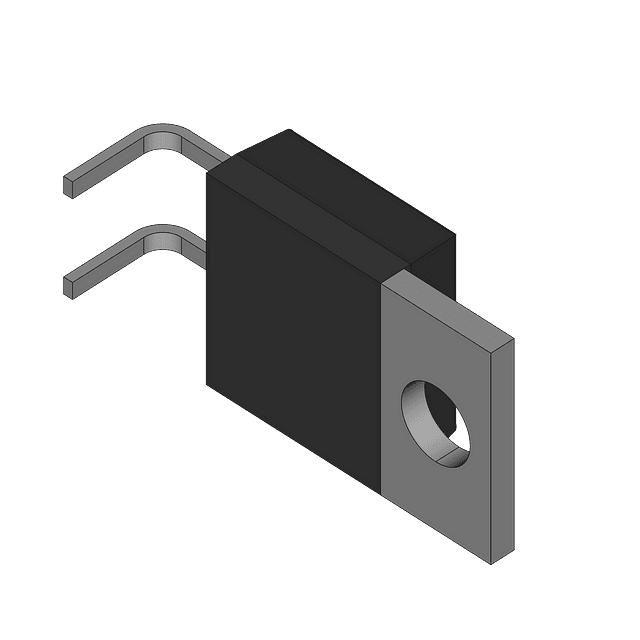

Product Images
