Infineon
IDT04S60C
Rectifier Diode, Schottky, 1 Phase, 1 Element, 4A, 600V V(RRM), Silicon Carbide, TO-220AC, GREEN, PLASTIC, TO-220, 2 PIN
PackageTO-220
Current Rating4A
PolarityStandard
Quick Jump:
Technical Specifications
Infineon IDT04S60C technical specifications.
General
Package/Case
TO-220
Current Rating
4A
Forward Current
4A
Lead Free
Lead Free
Max Forward Surge Current (Ifsm)
32A
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Leakage Current
50uA
Max Surge Current
32A
Output Current
4A
Package Quantity
500
Packaging
Rail/Tube
Polarity
Standard
Reach SVHC Compliant
No
RoHS Compliant
Yes
DC Rated Voltage
600V
Compliance
RoHS
Compliant
Datasheet
Infineon IDT04S60C Datasheet
Download the complete datasheet for Infineon IDT04S60C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

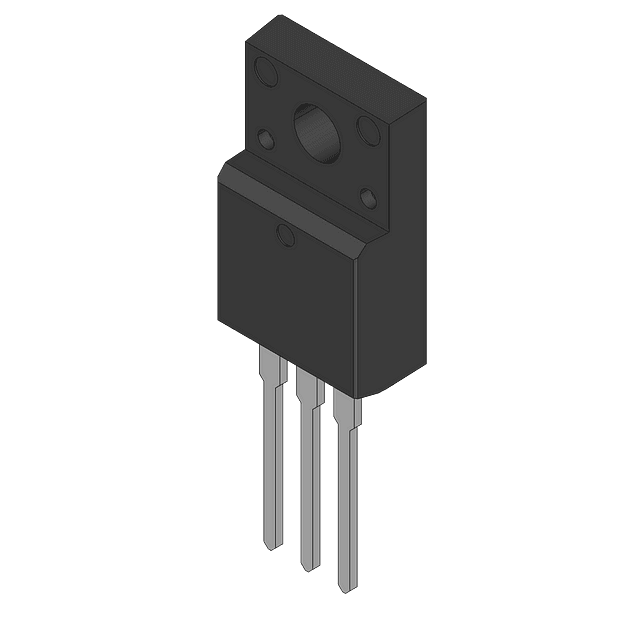

Product Images
