Infineon
IFX91041EJV33XUMA1
Switching Regulator, Voltage-mode, 3.6A, 420kHz Switching Freq-Max, PDSO8, GREEN, PLASTIC, MS-012BA, SOP-8
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Infineon IFX91041EJV33XUMA1 technical specifications.
General
Package/Case
SOIC
Halogen Free
Halogen Free
Lead Free
Lead Free
Max Input Voltage
45V
Min Input Voltage
4.75V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
1.8A
Min Output Voltage
3.3V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
45V
Output Configuration
Positive
Output Current
1.8A
Output Type
Fixed
Output Voltage
3.3V
Packaging
Cut Tape
RoHS Compliant
Yes
Synchronous Rectifier
No
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Infineon IFX91041EJV33XUMA1 Datasheet
Download the complete datasheet for Infineon IFX91041EJV33XUMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

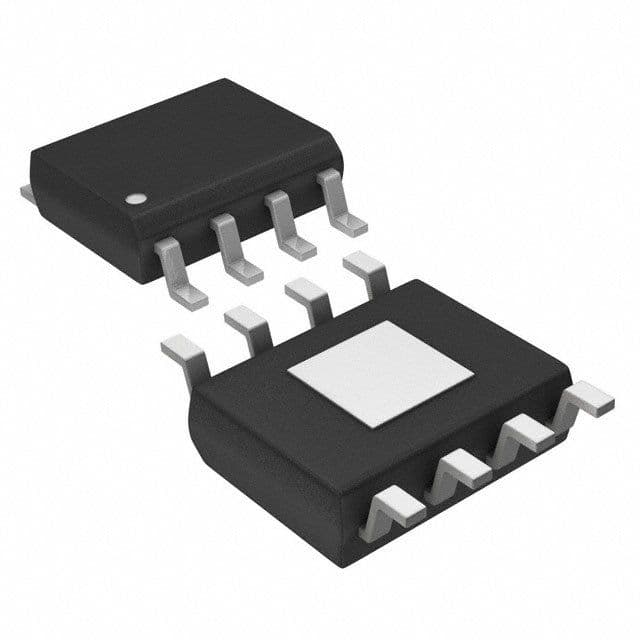

Product Images
