Technical Specifications
Infineon IPI80N06S407AKSA2 technical specifications.
General
| Package/Case | TO-262-3 |
| Continuous Drain Current (ID) | 80A |
| Drain to Source Voltage (Vdss) | 60V |
| Fall Time | 5ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Input Capacitance | 4.5nF |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 60V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 79W |
| Mount | Through Hole |
| On-State Resistance | 7.1mR |
| Package Quantity | 500 |
| Power Dissipation | 79W |
| Rds On Max | 7.4mR |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101, OptiMOS™ |
| Turn-Off Delay Time | 23ns |
| Turn-On Delay Time | 15ns |
Compliance
| RoHS | Compliant |
Datasheet
Infineon IPI80N06S407AKSA2 Datasheet
Download the complete datasheet for Infineon IPI80N06S407AKSA2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

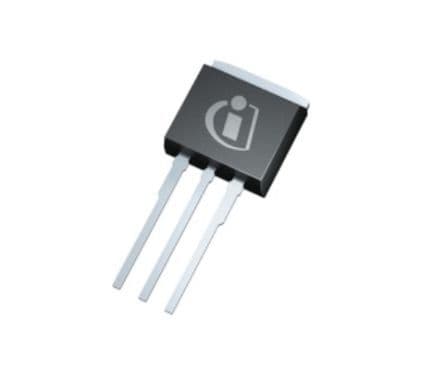

Product Images
