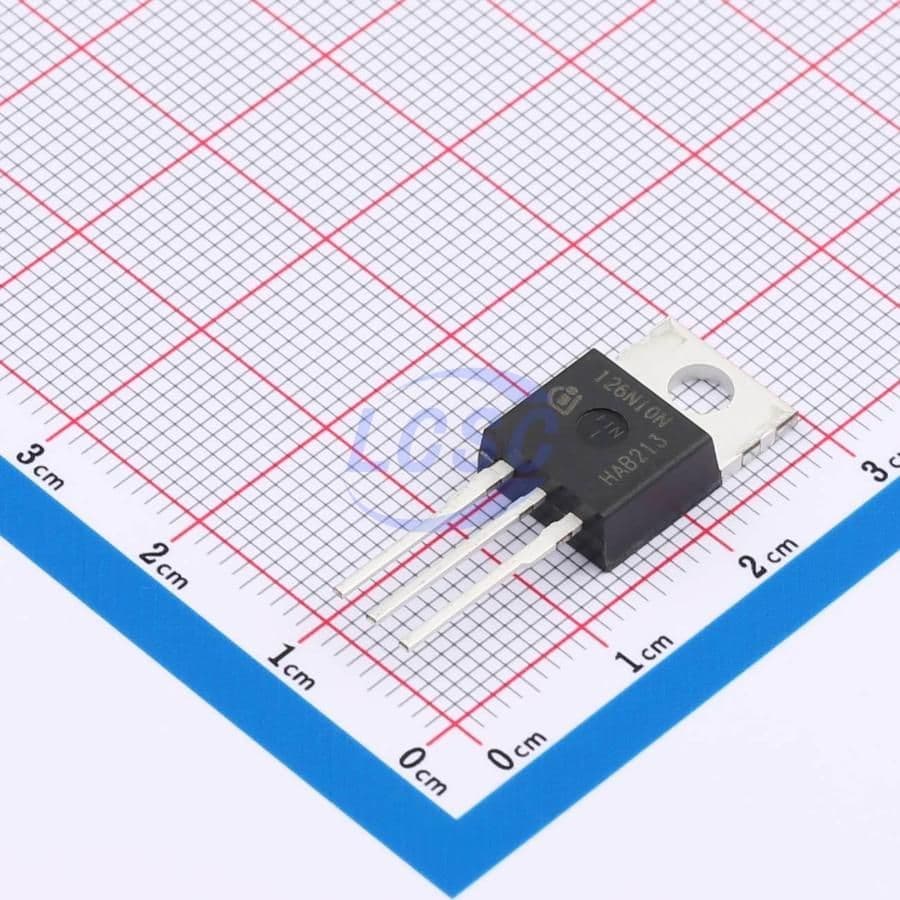

N-Channel Power MOSFET featuring 100V drain-source voltage and 58A continuous drain current. This silicon, metal-oxide semiconductor FET offers a low on-state resistance of 12.6mΩ and a maximum power dissipation of 94W. Designed for through-hole mounting in a TO-220 package, it operates within a temperature range of -55°C to 175°C. Key switching characteristics include a fall time of 5ns, turn-on delay of 14ns, and turn-off delay of 24ns. This component is RoHS compliant and halogen-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon IPP126N10N3GXKSA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220 |
| Continuous Drain Current (ID) | 58A |
| Drain to Source Voltage (Vdss) | 100V |
| Fall Time | 5ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Height | 15.95mm |
| Input Capacitance | 2.5nF |
| Lead Free | Lead Free |
| Length | 10.36mm |
| Max Dual Supply Voltage | 100V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 94W |
| Mount | Through Hole |
| Number of Elements | 1 |
| On-State Resistance | 12.6mR |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| Power Dissipation | 94W |
| Rds On Max | 12.3mR |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Turn-Off Delay Time | 24ns |
| Turn-On Delay Time | 14ns |
| Width | 4.57mm |
| RoHS | Compliant |
