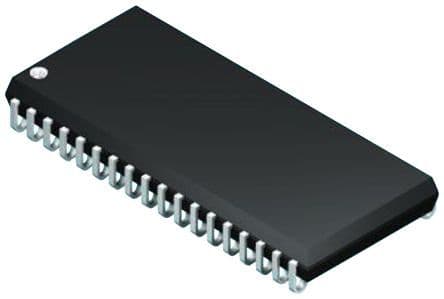

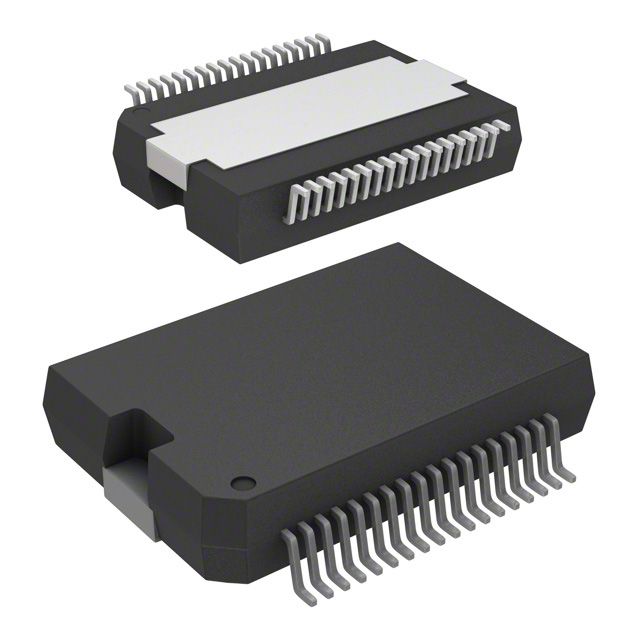

8-channel peripheral driver IC featuring SPI serial interface and half-bridge output configuration. Delivers 1.4A output current per channel with a maximum output current of 1.2A. Includes over-voltage and over-temperature fault protection. Operates within a temperature range of -25°C to 125°C, with a nominal input voltage of 5.5V. Surface mountable in a 36-pin PDSO package, supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon ISO1H816GAUMA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon ISO1H816GAUMA1 technical specifications.
| Fault Protection | Over Voltage, Over Temperature |
| Halogen Free | Halogen Free |
| Interface | SPI, Serial |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 1.2A |
| Max Power Dissipation | 3.3W |
| Mount | Surface Mount |
| Nominal Input Voltage | 5.5V |
| Number of Channels | 8 |
| Number of Outputs | 8 |
| Output Configuration | High Side |
| Output Current | 1.4A |
| Package Quantity | 800 |
| Packaging | Tape and Reel |
| Power Dissipation | 3.3W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | ISOFACE™ |
| Supply Current | 4.5mA |
| RoHS | Compliant |
Download the complete datasheet for Infineon ISO1H816GAUMA1 to view detailed technical specifications.
