Technical Specifications
Infineon SPA02N80C3XKSA1 technical specifications.
General
| Continuous Drain Current (ID) | 2A |
| Drain to Source Voltage (Vdss) | 800V |
| Fall Time | 18ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 800V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Packaging | Rail/Tube |
| Power Dissipation | 30.5W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 65ns |
| Turn-On Delay Time | 25ns |
Compliance
| RoHS | Compliant |
Datasheet
Infineon SPA02N80C3XKSA1 Datasheet
Download the complete datasheet for Infineon SPA02N80C3XKSA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

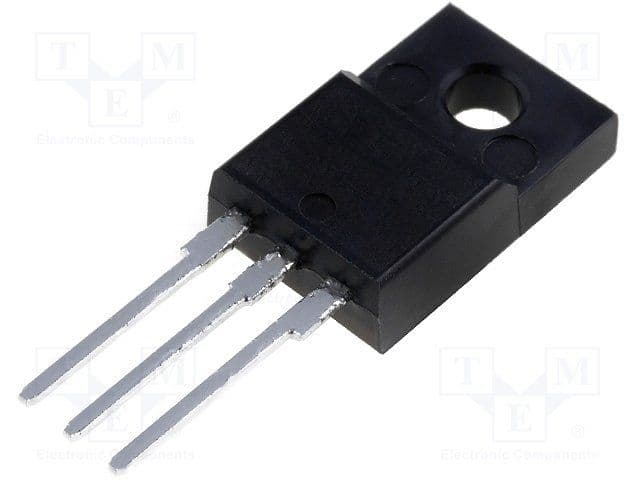

Product Images
