Infineon
TLE4250-2G
Power Supply Support Circuit, Adjustable, 1 Channel, PDSO5, GREEN, PLASTIC, SCT-595, 5 PIN
PackageSMD/SMT
PolarityPositive, Negative
Quick Jump:
Technical Specifications
Infineon TLE4250-2G technical specifications.
General
Accuracy
0.5%
Package/Case
SMD/SMT
Dropout Voltage
100mV
Height
1.1mm
Length
2.9mm
Min Current Limit
51mA
Max Input Voltage
40V
Min Input Voltage
4V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
120mA
Number of Outputs
1
Number of Regulators
1
Output Current
50mA
Output Type
Adjustable
Output Voltage
40V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive, Negative
Quiescent Current
10uA
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Infineon TLE4250-2G Datasheet
Download the complete datasheet for Infineon TLE4250-2G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

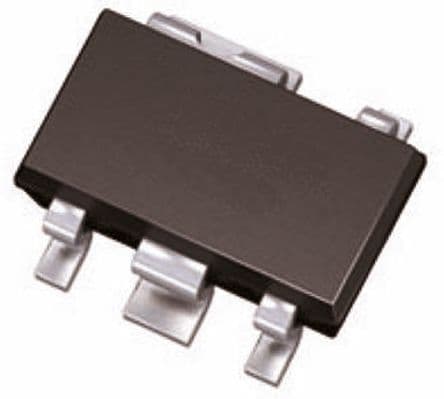

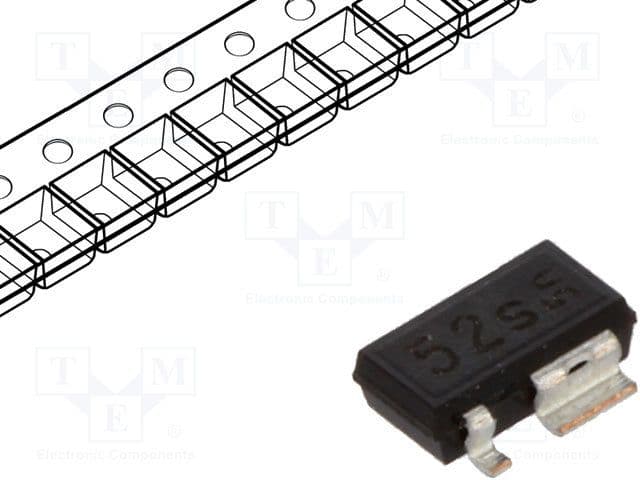

Product Images
