Infineon
TLE42694GM
Fixed Positive LDO Regulator, 5V, 0.5V Dropout, BIPolar, PDSO14, GREEN, PLASTIC, DSOP-14
PackageSOIC
PolarityPositive
Quick Jump:
Technical Specifications
Infineon TLE42694GM technical specifications.
General
Accuracy
2%
Package/Case
SOIC
Dropout Voltage
250mV
Halogen Free
Halogen Free
Lead Free
Lead Free
Min Current Limit
150mA
Max Input Voltage
45V
Min Input Voltage
5.5V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Number of Outputs
1
Number of Regulators
1
Output Current
100mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
70dB
Quiescent Current
210uA
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Compliance
RoHS
Compliant
Datasheet
Infineon TLE42694GM Datasheet
Download the complete datasheet for Infineon TLE42694GM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

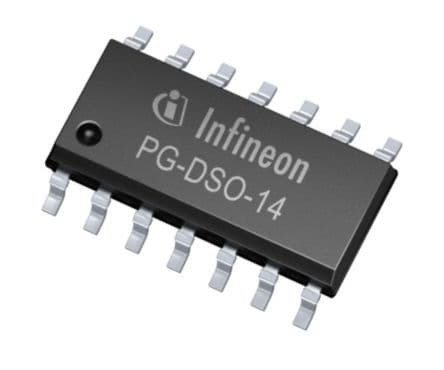

Product Images
