Fixed positive linear voltage regulator (LDO) with a 5V nominal output voltage and 400mA maximum output current. Features a low dropout voltage of 250mV and high accuracy of 2%. Operates with input voltages from 5.5V to 40V, and a maximum supply current of 30mA. Packaged in a TO-252-3 surface-mount package, this component is designed for automotive applications and is AEC-Q100 qualified.
PackageTO-252-3
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Infineon TLE42744DV50ATMA1 technical specifications.
General
| Accuracy | 2% |
| Package/Case | TO-252-3 |
| Dropout Voltage | 250mV |
| Halogen Free | Halogen Free |
| Lead Free | Contains Lead |
| Max Input Voltage | 40V |
| Min Input Voltage | 5.5V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 400mA |
| Min Output Voltage | 5V |
| Max Supply Current | 30mA |
| Max Supply Voltage | 40V |
| Mount | Surface Mount |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 400mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 60dB |
| Quiescent Current | 100A |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100, OPTIREG™ |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Infineon TLE42744DV50ATMA1 Datasheet
Download the complete datasheet for Infineon TLE42744DV50ATMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

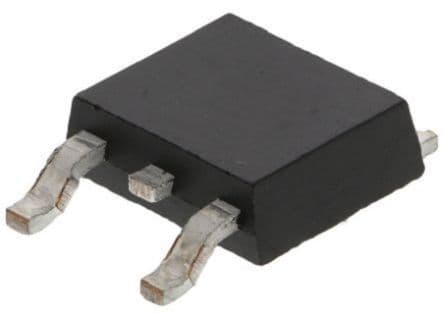

Product Images
