Technical Specifications
Infineon TLE4274GSV25 technical specifications.
General
| Accuracy | 4% |
| Package/Case | TO-261-4 |
| Dropout Voltage | 1V |
| Min Current Limit | 400mA |
| Max Input Voltage | 40V |
| Min Input Voltage | 4.7V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 400mA |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 400mA |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 100uA |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
Compliance
| RoHS | Compliant |
Datasheet
Infineon TLE4274GSV25 Datasheet
Download the complete datasheet for Infineon TLE4274GSV25 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

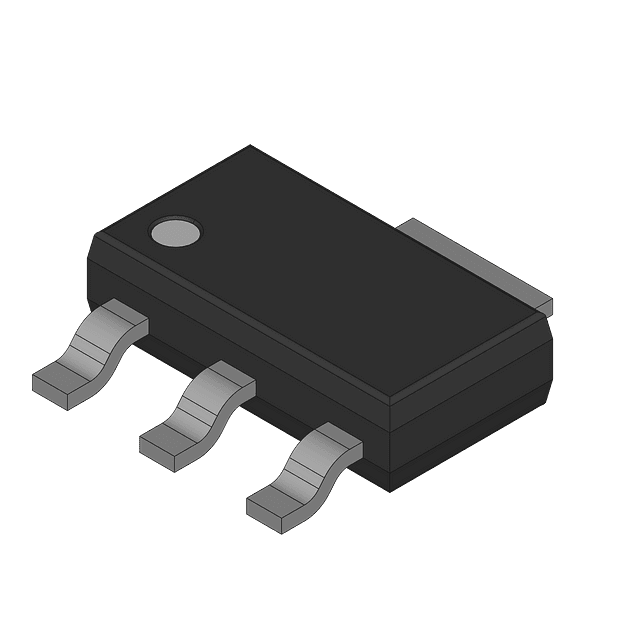

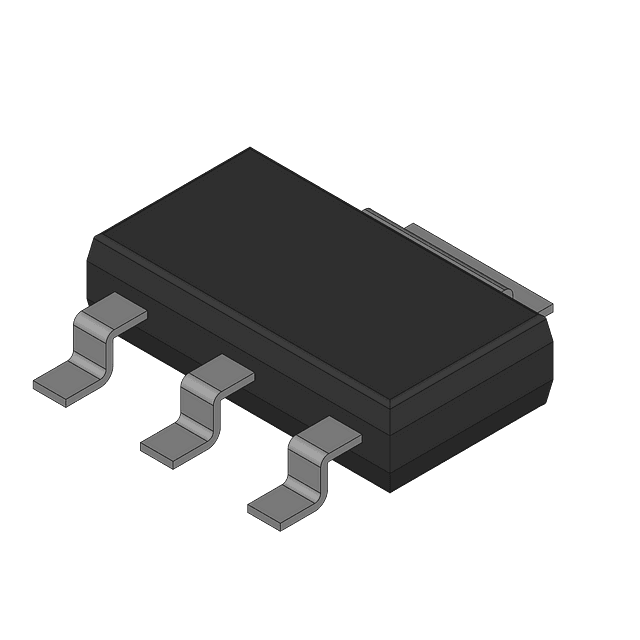

Product Images
