Infineon
TLE42754D
Fixed Positive LDO Regulator, 5V, 0.5V Dropout, BIPolar, PSSO4, GREEN, PLASTIC, TO-252, 5 PIN
PackageTO-252-5
PolarityPositive
Quick Jump:
Technical Specifications
Infineon TLE42754D technical specifications.
General
Accuracy
2%
Package/Case
TO-252-5
Dropout Voltage
250mV
Halogen Free
Halogen Free
Min Current Limit
450mA
Max Input Voltage
42V
Min Input Voltage
5.5V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
450mA
Number of Outputs
1
Number of Regulators
1
Output Current
450mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
150uA
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Compliance
RoHS
Compliant
Datasheet
Infineon TLE42754D Datasheet
Download the complete datasheet for Infineon TLE42754D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

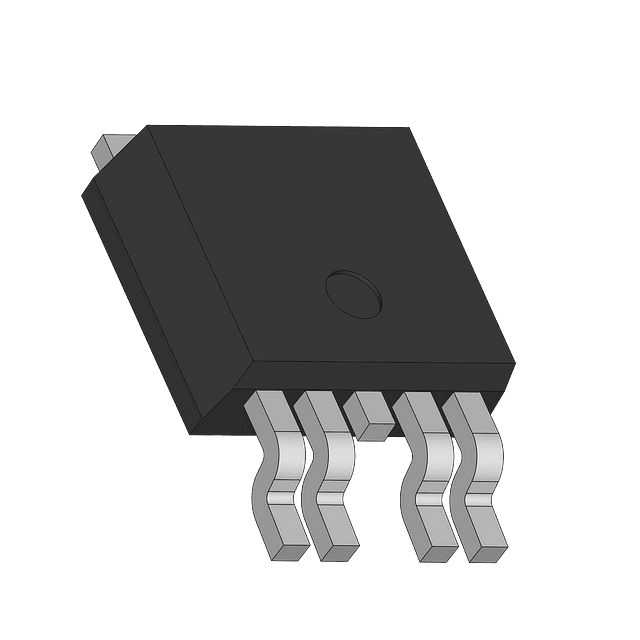

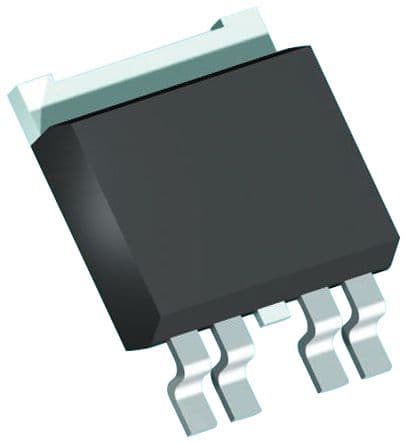

Product Images
