Fixed positive LDO regulator offering a 3.3V nominal output voltage with 400mA output current. Features a 0.5V dropout voltage and 2% accuracy. Operates from a 4.4V to 42V input voltage range, with a maximum supply current of 30mA. Packaged in a TO-263-6 surface mount configuration. Suitable for automotive applications with AEC-Q100 qualification.
PackageTO-263-6
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Infineon TLE4275GV33ATMA1 technical specifications.
General
| Accuracy | 2% |
| Package/Case | TO-263-6 |
| Halogen Free | Halogen Free |
| Lead Free | Contains Lead |
| Max Input Voltage | 42V |
| Min Input Voltage | 4.4V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 3.3V |
| Max Supply Current | 30mA |
| Max Supply Voltage | 42V |
| Mount | Surface Mount |
| Nominal Output Voltage | 3.3V |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 400mA |
| Output Type | Fixed |
| Packaging | Cut Tape |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 60dB |
| Quiescent Current | 180A |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100, OPTIREG™ |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Infineon TLE4275GV33ATMA1 Datasheet
Download the complete datasheet for Infineon TLE4275GV33ATMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

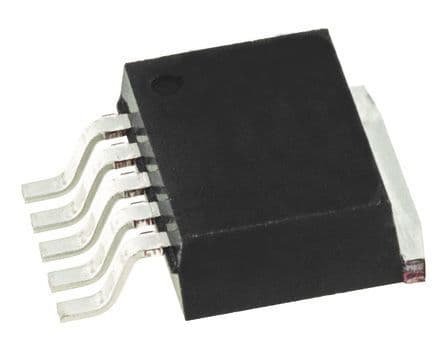

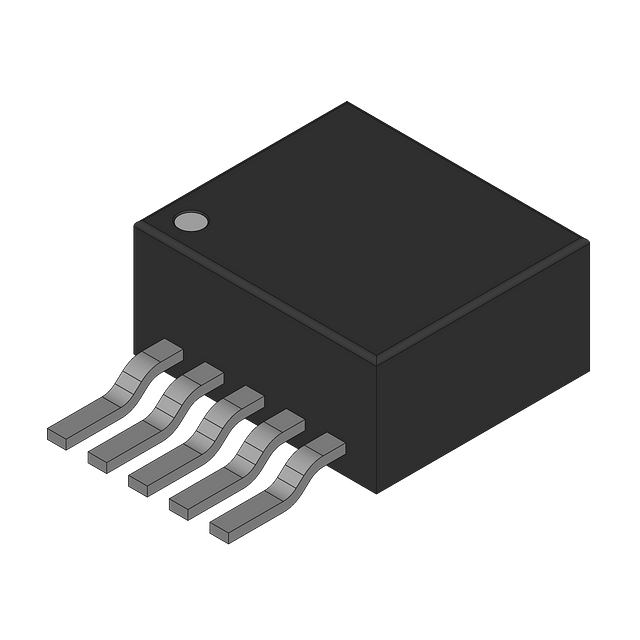

Product Images
