Infineon
TLE42764DV50
Fixed Positive LDO Regulator, 5V, 0.5V Dropout, BIPolar, PSSO4, GREEN, PLASTIC, TO-252, 5 PIN
PackageTO-252-5
PolarityPositive
Quick Jump:
Technical Specifications
Infineon TLE42764DV50 technical specifications.
General
Accuracy
2%
Package/Case
TO-252-5
Dropout Voltage
250mV
Halogen Free
Halogen Free
Min Current Limit
400mA
Max Input Voltage
40V
Min Input Voltage
5.5V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
1.1A
Number of Outputs
1
Number of Regulators
1
Output Current
400mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
2500
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
100uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Compliance
RoHS
Compliant
Datasheet
Infineon TLE42764DV50 Datasheet
Download the complete datasheet for Infineon TLE42764DV50 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

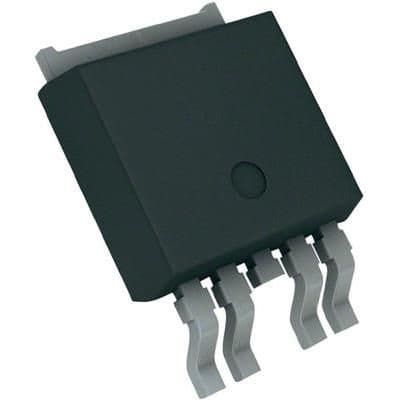

Product Images
