PackageSOIC
PolarityPositive
Quick Jump:
Technical Specifications
Infineon TLE42794G technical specifications.
General
Accuracy
2%
Package/Case
SOIC
Dropout Voltage
250mV
Halogen Free
Halogen Free
Min Current Limit
150mA
Max Input Voltage
45V
Min Input Voltage
5.5V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Number of Outputs
1
Number of Regulators
1
Output Current
100mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
2500
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
150uA
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Compliance
RoHS
Compliant
Datasheet
Infineon TLE42794G Datasheet
Download the complete datasheet for Infineon TLE42794G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

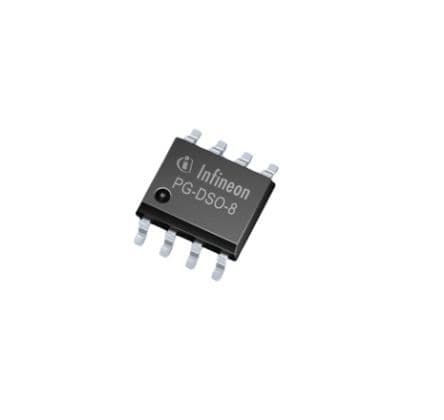

Product Images
