Infineon
TLE4290G
Fixed Positive LDO Regulator, 5V, 0.5V Dropout, BIPolar, PSSO5, PLASTIC, TO-263, 5 PIN
PackageTO-263-5
Quick Jump:
Technical Specifications
Infineon TLE4290G technical specifications.
General
Accuracy
2%
Package/Case
TO-263-5
Dropout Voltage
250mV
Halogen Free
Halogen Free
Min Current Limit
450mA
Max Input Voltage
42V
Min Input Voltage
5.5V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
400mA
Number of Outputs
1
Number of Regulators
1
Output Current
400mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
200uA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Infineon TLE4290G Datasheet
Download the complete datasheet for Infineon TLE4290G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

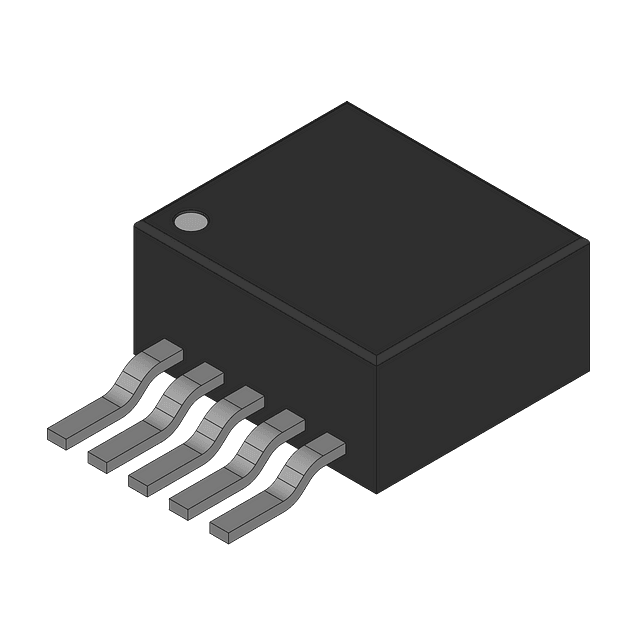

Product Images
