Fixed positive LDO regulator offering a 5V output voltage with 450mA maximum output current. Features a low 250mV dropout voltage and 2% accuracy. Operates from 3.3V to 42V input voltage, with a wide temperature range of -40°C to 150°C. Packaged in a 14-pin SSOP, this RoHS and Halogen Free component is suitable for automotive applications.
PackageSSOP
PolarityPositive
Quick Jump:
Technical Specifications
Infineon TLE4291EXUMA2 technical specifications.
General
Accuracy
2%
Package/Case
SSOP
Dropout Voltage
250mV
Halogen Free
Halogen Free
Min Current Limit
451mA
Max Input Voltage
42V
Min Input Voltage
3.3V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
450mA
Min Output Voltage
5V
Max Supply Current
30mA
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
450mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
2500
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
65dB
Quiescent Current
220uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Compliance
RoHS
Compliant
Datasheet
Infineon TLE4291EXUMA2 Datasheet
Download the complete datasheet for Infineon TLE4291EXUMA2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

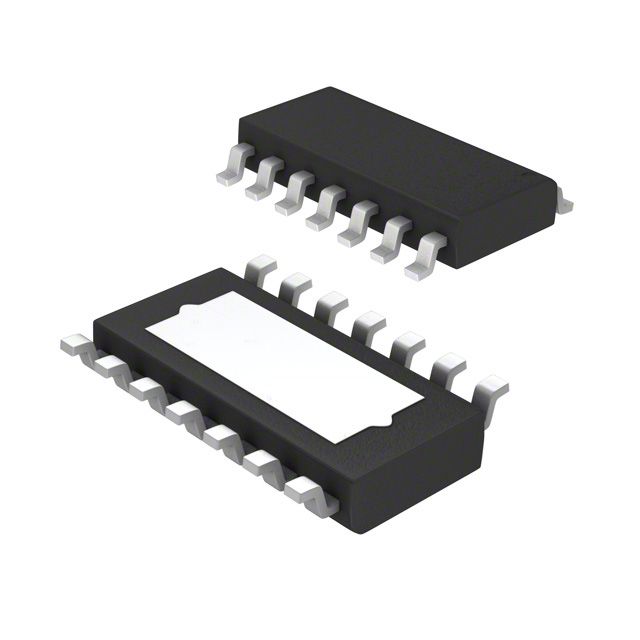

Product Images
