Infineon
TLE4905L
Hall Effect Sensor, 4mT Min, 17mT Max, Bipolar, Plastic/epoxy, Rectangular, 3 Pin, Through Hole Mount, GREEN, PLASTIC, SSOP-3
MountingThrough Hole
Quick Jump:
Technical Specifications
Infineon TLE4905L technical specifications.
General
Halogen Free
Not Halogen Free
Height
3.29mm
Lead Free
Lead Free
Length
4.16mm
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Supply Current
8mA
Max Supply Voltage (DC)
24V
Min Supply Voltage (DC)
3.5V
Max Supply Voltage
24V
Min Supply Voltage
3.8V
Mount
Through Hole
Operating Supply Current
4mA
Output Current
100mA
Output Voltage
32V
Package Quantity
2000
Packaging
Tape and Reel
RoHS Compliant
Yes
Type
Unipolar Switch
Width
1.52mm
Compliance
RoHS
Compliant
Datasheet
Infineon TLE4905L Datasheet
Download the complete datasheet for Infineon TLE4905L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

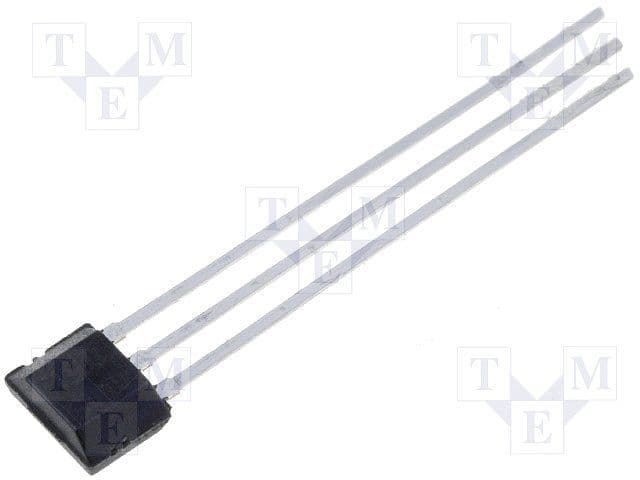

Product Images
