Infineon
TLE4906K
Hall Effect Sensor, 4.7mT Min, 12.9mT Max, -0.7-18V, Bipolar, Plastic/Epoxy, Rectangular, 3 Pin, Surface Mount, SC-59, 3 PIN
PackageSC
Quick Jump:
Technical Specifications
Infineon TLE4906K technical specifications.
General
Package/Case
SC
Height
1.1mm
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
20mA
Max Supply Current
6mA
Max Supply Voltage
18V
Min Supply Voltage
2.7V
Operating Supply Current
6mA
Output Current
20mA
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TLE
Type
Unipolar Switch
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Infineon TLE4906K Datasheet
Download the complete datasheet for Infineon TLE4906K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

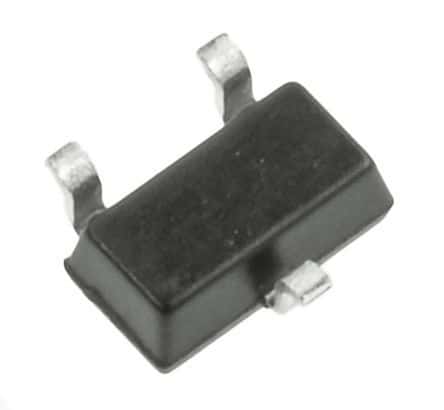

Product Images
