Infineon
TLE4921-5U
Hall Effect Sensor, 0mT Min, 20mT Max, 0.25-0.60V, Bipolar, Plastic/Epoxy, Rectangular, 4 Pin, Through Hole Mount, PLASTIC, SSO-4
PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Infineon TLE4921-5U technical specifications.
General
Package/Case
SIP
Height
3.71mm
Lead Free
Lead Free
Length
5.34mm
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
50mA
Max Supply Current
8.8mA
Max Supply Voltage
24V
Min Supply Voltage
4.5V
Mount
Through Hole
Output Current
50mA
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TLE
Width
1mm
Compliance
RoHS
Compliant
Datasheet
Infineon TLE4921-5U Datasheet
Download the complete datasheet for Infineon TLE4921-5U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

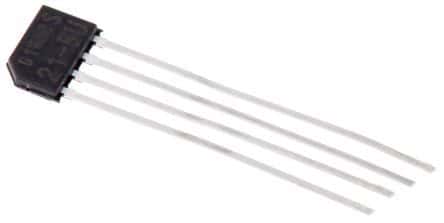

Product Images
