Infineon
TLE4946-2K
Hall Effect Sensor, 0-3.5mT Min, 3.5mT Max, -0.7-18V, Bipolar, Plastic/Epoxy, Rectangular, 3 Pin, Surface Mount, SC-59, SOT-23, 3 PIN
PackageSC
Quick Jump:
Technical Specifications
Infineon TLE4946-2K technical specifications.
General
Package/Case
SC
Height
1.1mm
Length
3mm
Logic Function
Latch
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
20mA
Max Supply Current
6mA
Max Supply Voltage
24V
Min Supply Voltage
2.7V
Operating Supply Current
6mA
Output Current
20mA
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Series
TLE
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Infineon TLE4946-2K Datasheet
Download the complete datasheet for Infineon TLE4946-2K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

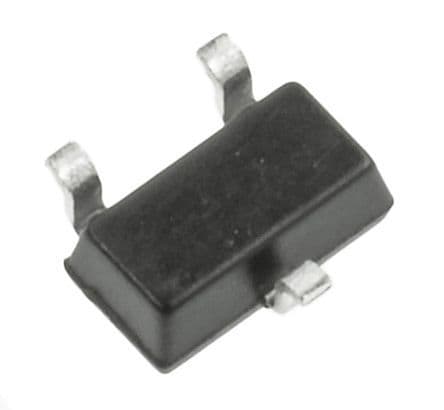

Product Images
