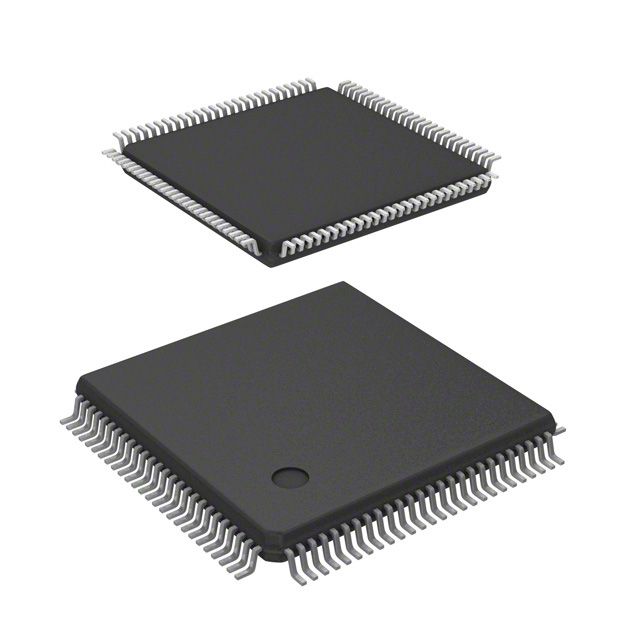

16-bit RISC microcontroller featuring 256KB FLASH memory and 12KB RAM. Operates at a maximum frequency of 20MHz with a 16-bit data bus width. Offers 79 programmable I/Os and includes peripherals such as PWM and a watchdog timer. Supports interfaces including CAN, SPI, UART, USART, and EBI/EMI. Operates within a supply voltage range of 4.4V to 5.5V, with an operating temperature range of -40°C to 125°C. Packaged in a TQFP-100, tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon XC164CS32F20FBBAKXUMA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon XC164CS32F20FBBAKXUMA1 technical specifications.
| Package/Case | TQFP |
| Data Bus Width | 16b |
| Frequency | 20MHz |
| Halogen Free | Halogen Free |
| Interface | CAN, SPI, UART, USART, EBI/EMI |
| Lead Free | Lead Free |
| Max Frequency | 20MHz |
| Max Operating Temperature | 125°C |
| Memory Size | 256KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.4V |
| Number of I/Os | 79 |
| Number of Programmable I/O | 79 |
| Number of Timers/Counters | 5 |
| Operating Supply Voltage | 5V |
| Oscillator Type | Internal |
| Package Quantity | 1400 |
| Packaging | Tape and Reel |
| Peripherals | PWM, WDT |
| RAM Size | 12KB |
| RoHS Compliant | Yes |
| Series | XC16x |
| Watchdog Timer | Yes |
| RoHS | Compliant |
